Electric Wire Rope Hoist

What is Electric Wire Rope Hoist?

As mentioned above, wire rope electric hoist is the oldest electric hoist and also the most widely used electric hoist. Normally, it’s used as a lifting mechanism of overhead crane, gantry crane, jib crane, and workstation crane system. Electric hoist with small size, light weight, simple operation, easy to use features, usually be used in industrial and mining enterprises, storage terminals and other places.

Main parts of electric wire rope hoist include lifting motor, gear box, winding drum, wire rope, rope guide, hook group, electrical parts and safety limiter parts.

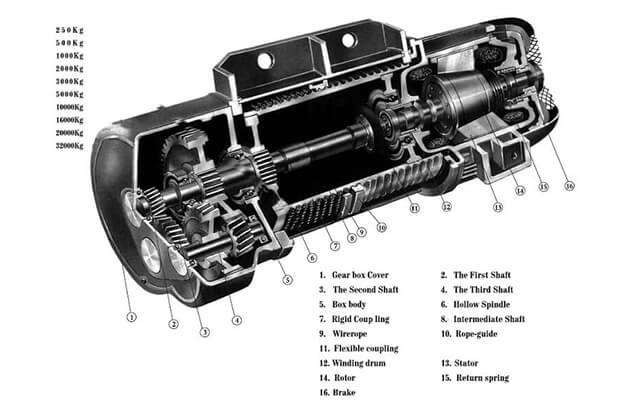

Traditional type electric wire rope hoist structure

Single speed electric wire rope hoist

Traditional type electric hoist includes CD1, MD1, BCD, YH, CDL type electric wire rope hoist. From the structure you can see that, when the lifting motor is started, the power generated will drive the reel to rotate through a series of transmission devices, and the wire rope will be wound or separated from the reel after being combed by the rope guide to achieve the purpose of lifting or lowering. That's how electric wire rope hoist work.

Recent years, Yuantai launched Europe-spec electric wire rope hoist system to meet market needs. The new electric hoist is designed refer to GB (China), FEM (Europe), DIN (Europe) and other industry-related (ISO) standards.

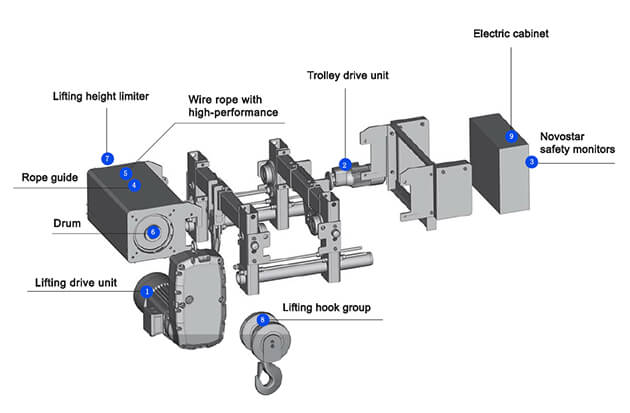

Europe-spec electric wire rope hoist structure

ND electric wire rope hoist

Compared with traditional electric wire rope hoist, the structure of Europe-spec electric wire rope hoist is more compact and net headroom is lower. But their working principle is the same.

Europe-spec electric wire rope hoist advantages:

• Compact structure, light weight, small wheel pressure, maximum use of space, comprehensive cost performance
• Modular design, low maintenance costs, complete spare parts service
• Adopt low clearance design to save building height for customer workshop design, increase workshop hoisting area and save construction cost
• Selected quality parts, low noise, safe and reliable, durable
• Precise positioning, efficient operation, high sustainable work efficiency
• Safe and reliable, operational monitoring, easy to repair.

What drives electric wire rope hoist?

Electric hoist, a product of the electrical age.

Every electric wire rope hoist has at least one motor – lifting motor. It uses electricity as power. All over the world, people are using different voltages and Hertz, and electric hoists with different power sources have also emerged.

The power supply of Yuantai electric wire rope hoist for sale is from 220V to 480V with 50/60Hz. When you want to get the electric hoist price, don’t forget to tell us your power supply.

Where is the electric wire rope hoist used?

As mentioned above, electric wire rope hoist normally is equipped on crane systems as lifting mechanism.

• For monorail, the hoist is mounted on single girder or I-beam;
• For double beam crane system, the hoist can be designed as an electric crab hoist trolley, travelling on the double girder crane.

The crane system equipped with electric wire rope hoist are serving every industry, such as:

• Mechanical processing
• General manufacturing
• Automobile
• Aviation industry
• Metals industry
• Paper and pulping
• Power energy industry
• Waste to Energy and Biomass
• Petroleum and gas
• Mining

How to choose the right electric wire rope hoist for your project?

You can refer to the following criteria to make a judgment:

• Working environment. If the working environment is a special, such as flammable, explosive, high temperature, high dust, and highly corrosive workplaces, explosion-proof electric wire rope hoist is recommended.
• Want low noise, low power consumption, maintenance-free, European electric hoist is more suitable for you
• Want low cost, traditional electric wire rope hoist (CD1, MD1, BCD, YH, CDL type) is more cost-effective.
• The space is limited and the height requirements are high, low headroom electric wire rope hoist is suitable.

Don't have an idea? Just contact us with your request, we will recommend suitable electric wire rope hoist according your situation.
