Electric Crab Hoist for Sale for Double Girder Crane

Home > Electric Hoist > Electric Wire Rope Hoist

Electric Crab Hoist for Sale for Double Girder Crane

Electric crab hoist (double girder hoist) could greatly reduces the user s crane construction costs and crane operating costs, and improves the crane s overall quality and performance.

Price: $3500-$12000 / set Get Latest Price
PDF Catalog Video Show

Specifications

Electric crab hoist (double girder hoist) is designed according to the latest national standard GB/T3811 "Design specifications for cranes", and with reference to European FEM standard, has the features of lightweight, modular design, and advanced manufacturing process. It greatly reduces the user's crane construction costs and crane operating costs, and improves the crane's overall quality and performance.

Electric Crab Hoist Supply Scope

  • Lifting capacity: 1,000-80,000 Kg
  • Lifting height: 6/9/12/15/18 m
  • Voltage: 220-600v 50/60Hz 3Phase (Single phase is not available.)
  • Ambient temperature: -20~+40℃

Note: For non-standard specifications, please talk to your sales representative for consultation on customized product service.

Option A Features

Crab hoist

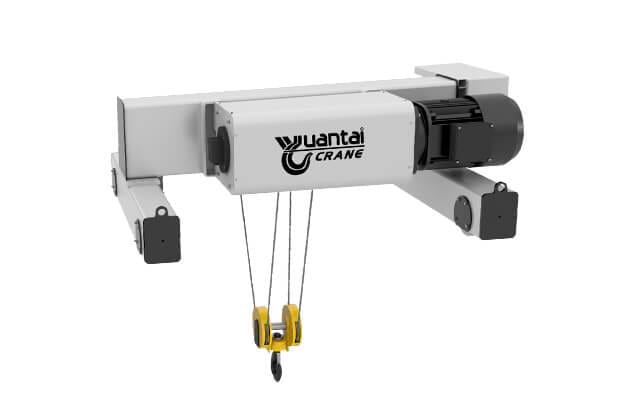

Crab Hoist Option A

  • Crab hoist trolley frame made by rectangular hollow section steel, light weight and durable.
  • Wheels made by alloyed steel material, high wear-and-tear resistance feature.
  • Double driving motors distribute on both sides, smooth running along straight line.
  • Compact structure maximizes the effective three-dimensional space of the hook

Option B Features

Crab hoist

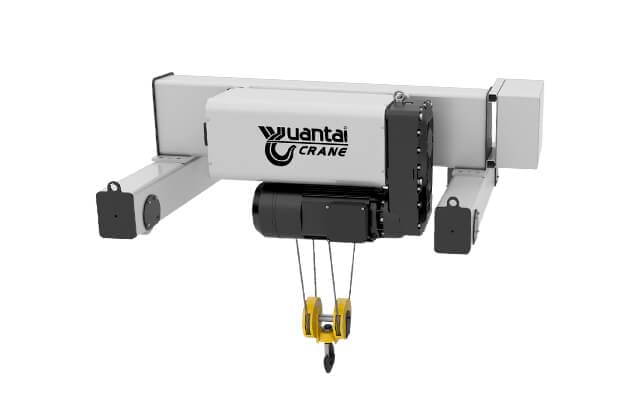

Crab Hoist Option B

  • Independent intellectual Property in hoisting mechanism with FEM standard design.
  • Crab hoist trolley frame made by rectangular hollow section steel, light weight and durable.
  • Wheels made by alloyed steel material, high wear-and-tear resistance feature.
  • Double driving motors distribute on both sides, smooth running along straight line.
  • Compact structure maximizes the effective three-dimensional travel of the hook.

Electric Crab Hoist Application

Electric Crab Hoist is widely used on double girder crane as a lifting mechanism, such as double girder overhead crane and double girder gantry crane. It has an independent electronic control system, which can work with the crane after being connected to the crane system.

How to make an inquiry on the electric crab hoist?

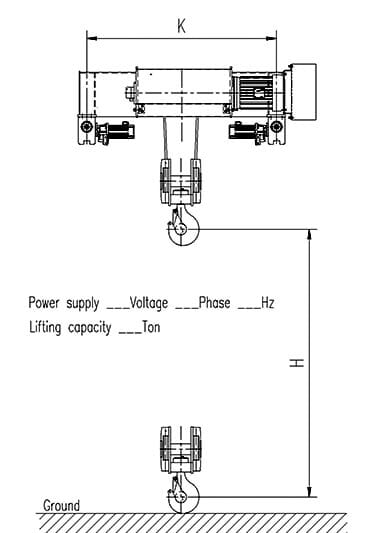

Crab hoist parameters

Please include the following information in the inquiry message form or in your inquiry email, we will send our quotation according your requirements.

  • Lifting capacity: ____ ton
  • Lifting height (H):____ m
  • Rail gauge (K): ____ m
  • Power supply: ____V ____Hz ____Phase

Parameters

Capacity (Kg) Working grade FEM Working grade IOS Lifting height (m) Lifting speed (m/min) Travelling speed
(m/min)
3.2T 2m M5 6/9/12/15/18 0-5.0 0-20
3.2T 2m M5 6/9/12/15/18 0-8.0 0-20
5T 2m M5 6/9/12/15/18 0-5.0 0-20
5T 2m M5 6/9/12/15/18 0-8.0 0-20
8T 2m M5 6/9/12/15/18 0-4.0 0-20
8T 2m M5 6/9/12/15/18 0-4.5 0-20
10T 2m M5 6/9/12/15/18 0-4.0 0-20
10T 2m M5 6/9/12/15/18 0-4.5 0-20
12.5T 2m M5 6/9/12/15/18 0-4.0 0-20
12.5T 2m M5 6/9/12/15/18 0-5.0 0-20
16T 2m M5 6/9/12/15/18 0-4.4 0-20
16T 2m M5 6/9/12/15/18 0-5.0 0-20
20T 2m M5 6/9/12/15/18 0-3.5 0-20
20T 2m M5 6/9/12/15/18 0-5.0 0-20
25T 2m M5 6/9/12/15/18 0-2.8 0-20
25T 2m M5 6/9/12/15/18 0-3.8 0-20
32T 2m M5 6/9/12/15/18 0-2.8 0-20
32T 2m M5 6/9/12/15/18 0-3.8 0-20
50T 2m M5 6/9/12/15/18 0-3.0 0-20
50T 2m M5 6/9/12/15/18 0-4.0 0-20
50T 2m M5 6/9/12/15/18 0-5.0 0-20
63T 1Am M4 6/9/12/15/18 0-3.0 0-20
63T 1Am M4 6/9/12/15/18 0-4.0 0-20
80T 1Am M4 6/9/12/15/18 0-2.5 0-20
