Specifications
Electric trolley and manual trolley (monorail trolley) are widely used in factories, mines, docks, warehouses, machining, injection molding, die-casting, stamping, clamping molds, construction sites and other occasions for installing mechanical equipment and lifting goods.
Check the electric trolley and manual trolley parameters in the second tab.
Parameters

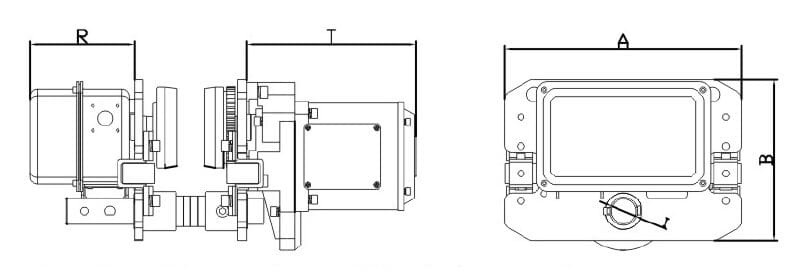

Electric Trolley Parameters
Model | ET-003 | ET-005 | ET-010 | ET-020 | ET-030 | ET-050 | ET-075 | ET-100 | |
Lifting Capacity(t) | 0.3 | 0.5 | 1 | 2 | 3 | 5 | 7.5 | 10 | |
Size (mm) | A | 315 | 315 | 315 | 325 | 340 | 400 | 400 | 500 |
B | 212 | 212 | 212 | 220 | 250 | 291 | 291 | 370 | |
R | 120 | 142 | 142 | 142 | 142 | 142 | 142 | 142 | |
T | 142 | 231 | 231 | 231 | 231 | 231 | 231 | 231 | |
I | ∮28 | ∮31 | ∮31 | ∮36 | ∮43 | ∮54 | ∮54 | ∮70 | |
Speed (m/min) | 12.2 | 11/21 | 11/21 | 11/21 | 11/21 | 11/21 | 11/21 | 11/21 | |
Motor (Kw) | 0.21 | 0.4 | 0.4 | 0.4 | 0.75 | 0.75 | 0.75 | 0.75 | |
Min. Turning Radius (m) | 0.8 | 0.8 | 0.8 | 0.8 | 1.0 | 1.8 | 1.8 | 2.8 | |
I-Beam (mm) | 52-153 | 52-153 | 52-153 | 82-178 | 100-178 | 100-178 | 100-178 | 150-220 |

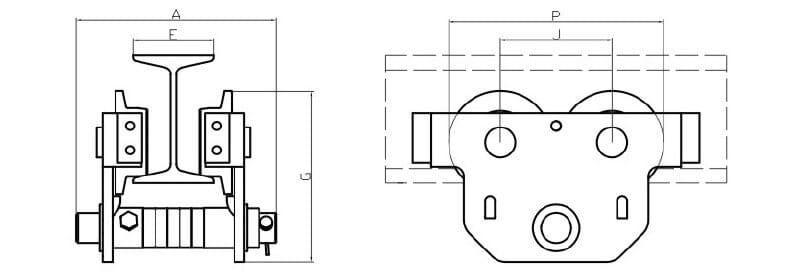

Manual Trolley Parameters
Model | MT-003 | MT-005 | MT-010 | MT-020 | MT-030 | MT-050 | |
Lifting Capacity(t) | 0.3 | 0.5 | 1 | 2 | 3 | 5 | |
Size (mm) | A | 460 | 200 | 200 | 218 | 275 | 275 |
G | 180 | 170 | 170 | 205 | 236 | 280 | |
J | 91 | 115 | 115 | 138 | 157 | 178 | |
E | 50-102 | 50-102 | 50-102 | 68-130 | 82-153 | 82-153 | |
P | 163 | 221 | 221 | 265 | 305 | 332 | |
Min. Turning Radius (m) | 0.6 | 0.6 | 0.6 | 1.0 | 1.0 | 1.2 |
