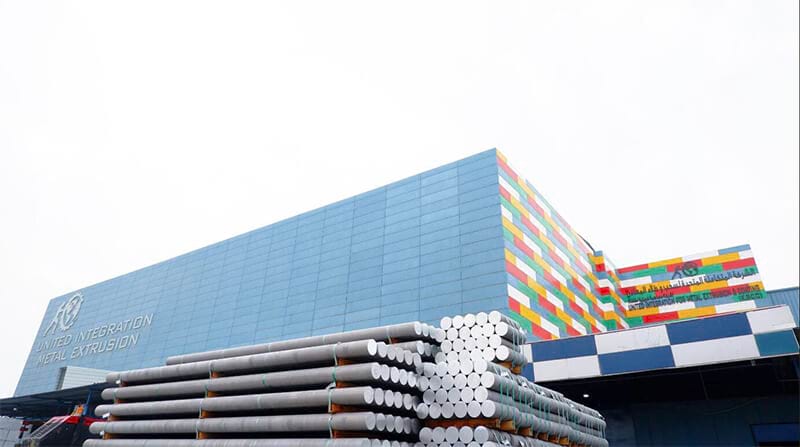

About the client - United Integration Extrusion
United Integration for Metal Extrusion and Coating (Integrated Extrusion©) is a multi-national Shareholding Company. Specializing in Aluminum Extrusions and Metal Industries.
Integrated Extrusion© has become a leading manufacturer and one of the largest in extrusion sector. Providing high capacity, technical support, engineering and high-end quality products. It is a cutting-edge organization with a combination of highly skilled personnel, pioneering in aluminum extrusions, backed-up by advance technologies.
With its multi productions and servicing facilities located in Kuwait, Qatar and Technical & Sales facilities in Bahrain and Italy. The Company is capable to provide from simple architectural section to large-scale, complex shape industrial profiles.
New Movable Jib Crane Needs for Workshop in Kuwait
As the production needs, the workshop of United Integrated Extrusion in Kuwait needs to be equipped few jib cranes. The mobile jib crane has its unique convenience, it can be moved wherever it is needed, which is very convenient. So, the purchase department knew the portable jib crane would be a suitable choice for their workers.
They were after a reliable jib crane supplier from the Internet, when they visited Yuantai Crane and checked the portable jib crane products, they believed Yuantai Crane can offer the quality mobile jib cranes they need. Yuantai Crane offered their 500kg suitable movable jib crane solution and quotations after clarifying the customer's needs.
The client was satisfied with the movable jib crane solution except one point – the total height of the jib crane was too high, almost touch the roof of the workshop. The engineer team of Yuantai Crane redesigned the jib crane with lower lifting height, so the total height of the movable jib crane is suitable for moving in the workshop. The Kuwait client agreed with the modified solution and signed one set jib crane as the first order.

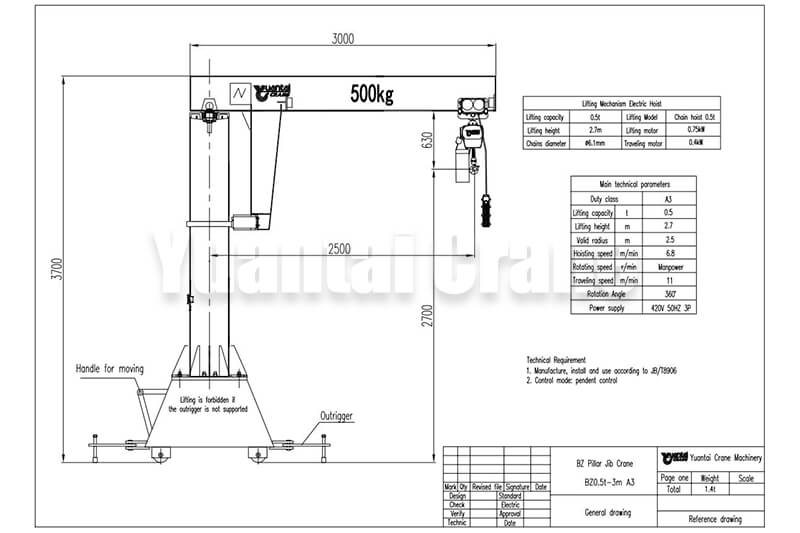

500kg Portable Jib Crane Solution
500kg Movable Jib Crane Specifications for Kuwait
- Lifting capacity: 500kg
- Lifting height: 2.7 meters
- Total height: 3.7 meters
- Valid radius: 2.5 meters
- Total arm length: 3.0 meters
- Power supply: 420VAC 50Hz 3Phase
- Rotation angle: 360°
- Rotation speed: manually
- Hoist type: electric chain hoist with motorized trolley
- Control voltage: 36V
- Lifting speed: 6.8 m/min
- Hoist traveling speed: 11 m/min
- Working duty: A3
- Control mode: pendent control
500kg Portable Jib Crane for Kuwait
More Related Information of Portable Jib Crane
Portable jib crane, also named mobile jib crane, is a special freestanding jib crane which can move with wheels. Its structure is similar with freestanding mounted jib crane, it can be equipped with hoist (electric wire rope hoist, electric chain hoist, chain block with trolley) to finish lifting tasks in workshops, warehouses and factories.
Mobile jib crane with flexible mobility, wide adaptability and other characteristics, is an efficient automatic production line on the necessary emergency lifting equipment, with it to ensure that the production line unimpeded. The jib crane widely used in factories and mines, workshops, field, warehouse installation of small equipment, cargo and workpiece handling, and low construction should not be set up driving and other places.
Portable Jib Crane Standard Configuration
- Boot rotation up to 360°
- Capacity up to 2 tons
- Span: 1-3m
- Lifting height:1-3m
- A3 working duty
- 220-480V 3Phase 50/60Hz power supply
Advantages of Yuantai Portable Jib Crane
Yuantai Portable Jib Crane has several advantages, including:
- Portability: The crane is designed to be easily moved from one location to another, making it ideal for use in different work environments.
- Flexibility: The crane's boom can be adjusted to different angles, allowing it to be used for a variety of lifting tasks.
- Easy to operate: The crane is designed to be user-friendly, with simple controls and easy-to-understand instructions.
- Cost-effective: Yuantai Portable Jib Crane is an affordable alternative to larger, more expensive cranes, making it a great option for small businesses and individuals.
- Durability: The crane is built to last, with high-quality materials and excellent workmanship ensuring that it can withstand heavy use and harsh working conditions.
- Wide adaptation: Without cement base, you can place it anywhere in manufacture and assembly line of factories and workshop or machine tool, warehouse, and wharf etc.
Maybe you are looking for a reliable crane supplier for your business, Yuantai Crane (Dongqi Crane) with almost 40 years crane design and manufacture experience will be your guide and help you succeed. We are ready to be a helpful guide who can offer help to you at any time, and walking with you all the way until you successfully solve your problem or complete your project. Contact us with your requirements today.
