We received the freestanding workstation crane inquiry message from Azamat who left it on our website. But there is no detailed crane request, just his contact. We contact him to confirm the detailed workstation crane requirements.

1).Lifting capacity - no more than 250 kg (to lifting the air cascade cylinders)
2).Lifting height= - height from floor to ceiling not more than 4.5 kg (see attached photos for your understanding)
3).Span - we have a rectangular room of 5 by 8 meters, without the possibility of mounting the crane on the walls and ceiling

In my opinion, the option is suitable only according to the photo, which is in the correspondence below. Could you please quote all of the positions shown in the photo. ETA required as well.

Customer

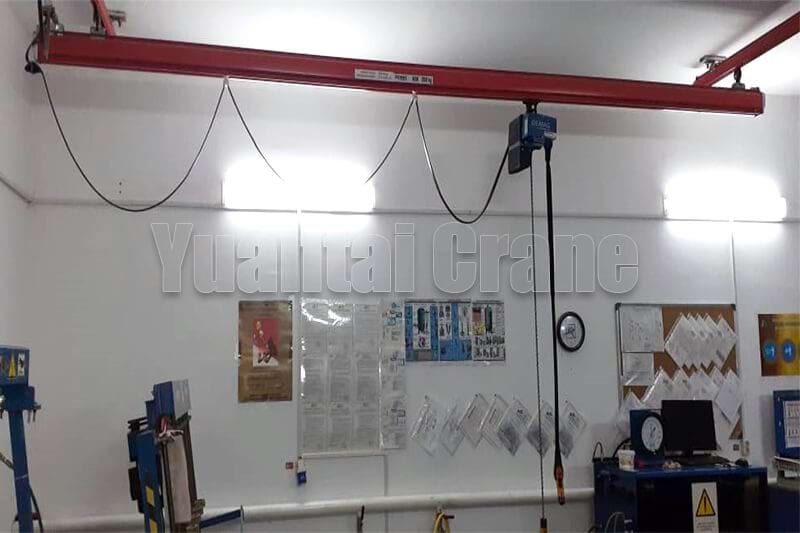

He replied us his answers and some photos, from the photos, you can see there is a small ceiling mounted bridge crane installed under the ceiling, for the new freestanding workstation crane, it can not be installed on the wall or ceiling, so, supported columns are required.

250Kg Freestanding Workstation Bridge Crane Design and Quotation

The working condition was clear, we designed suitable freestanding workstation bridge crane for him and sent the quotation.

250Kg freestanding workstation bridge crane drawing
250Kg freestanding workstation bridge crane drawing

250Kg freestanding workstation bridge crane quotation
250Kg freestanding workstation bridge crane quotation

I just clarify some point:
1.in the event of a lifting hoist failure, will it be possible to temporarily switch to manual operation? (lifting loads)
2. does the price include the assembly instructions in English

Azamat had two questions after checking the quotation. For electric chain hoist, if there is no power suddenly when lifting loads, the hoist will stop working and keep hanging the loads, you can press the button for manual release, the loads will fall under the force of gravity. For the second question, yes, we offer assembly instruction manual in English for the workstation crane.

After confirming the size of steel columns, Azamat had no doubts and place the freestanding workstation bridge crane order.

Azamat’s company is a suite of professional measures and innovative solutions supplier for hydrogen sulfide protection in the CIS countries. Experience of the company covers a wide range of operations for onshore and offshore projects with high H2S concentrations. Azamat's company protects people from harmful gases in the atmosphere. We believe that our freestanding workstation bridge crane will provide them with good service and support, supporting them to protect more people.

Yuantai Freestanding Bridge Crane Features

  • Enclosed track / easy movement and long life
  • Rigid runways / superior load positioning – no movement or “crabwalking” of the bridge
  • Ease of Installation / install on any standard 6" concrete floor
  • Smooth rolling surface / Easier movement of bridge and trolleys
  • Multiple track profiles and spanning capabilities/Adaptable, flexible, and cost competitive

I Need Freestanding Bridge Crane, How to Send an Inquiry?

Freestanding Bridge Crane Inquiry Parameters

  • Lifting capacity:
  • Length of W, S, H, and L (check the photo above)
  • Power supply (e.g. 380V 50Hz 3Phase):
  • Crane travel type: A. Electrical type   B. Manual type
  • Control Mode: A. Remote control   B. Pendant Control

Send us inquiry with information above to [email protected], we will quote you according your request.
