Dear Sir,

We are looking for the below Entertainment Electrical Hoist (Chandeliers lights) with full as per below Boq with Specification

1) ENTERAINMENT ELECTRICAL HOIST FOR CHANDELIER = 6 SET

1. ELECTRIC CHAIN ENTERTAINMENT HOIST DOUBLE BRAKE LOAD CAPACITY: 125 KG OR ABOVE (SUITABLE FOR STATIC SUSPENSION OF LOADS WITHOUT SECONDARY SAFETY DEVICE) HEIGHT OF LIFT: 15 METERSNO OF FALLS: SUPPLY: 400V/3PH/50HZ BRAKE: SELF ADJUSTING MAINTAINENCE FREE DC DISK BRAKE WITH COMPLETE CONTROLLER WITH ALL LOAD TEST THRID PARTY CERTIFCATE NEEED ON DELIVERY

2) ENTERAINMENT ELECTRICAL HOIST FOR CHANDELIER

1. ELECTRIC CHAIN ENTERTAINMENT HOIST DOUBLE BRAKE LOAD CAPACITY: 1600 KG OR ABOVE (SUITABLE FOR STATIC SUSPENSION OF LOADS WITHOUT SECONDARY SAFETY DEVICE)

HEIGHT OF LIFT: 15 METERS NO OF FALLS:
SUPPLY: 400V/3PH/50HZ BRAKE: SELF ADJUSTING MAINTAINENCE FREE DC DISK BRAKE WITH COMPLETE CONTROLLER WITH ALL LOAD TEST THRID PARTY CERTIFCATE NEEED ON DELIVERY

Kindly can you quote us best possible prices and short delivery and looking for Ex-stock with installation Supervision and provide us the previous middle approval.

What the client need

On July 29, 2022, we received an inquiry for a stage chain hoist from a Qatar customer. The client needs 6 units 125kg and 1 unit 1.6t stage hoist to hoist the chandeliers in the venue. The customer's working conditions are clear, and requiring the stage hoist to use double brakes, which is the standard configuration of Yuantai stage hoist.

In the RFQ sent by the customer, all parameters and requirements are very clear. We directly responded to the customer with the quotation, and the customer was very satisfied with our price. Compared with other suppliers, our products and prices are very competitive.

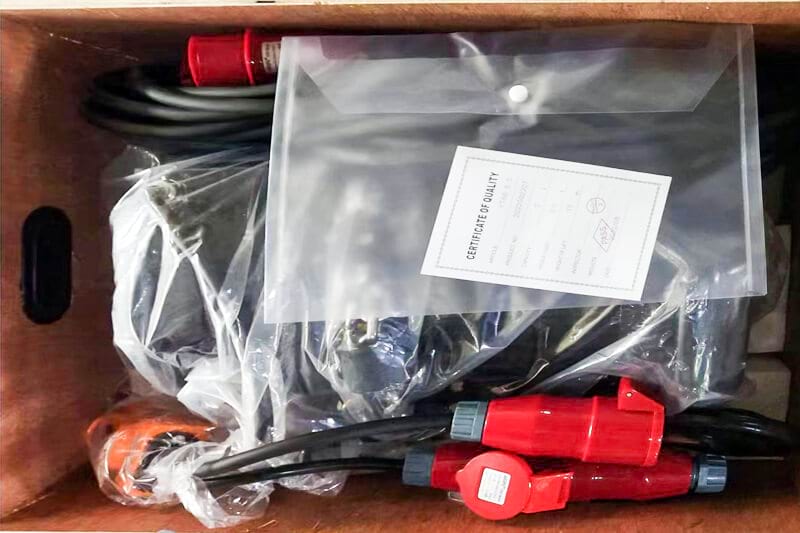

So, the customer decided to purchase these stage chain hoists from us. At present, the production of this batch of stage gourds has been completed and is on its way to Qatar.

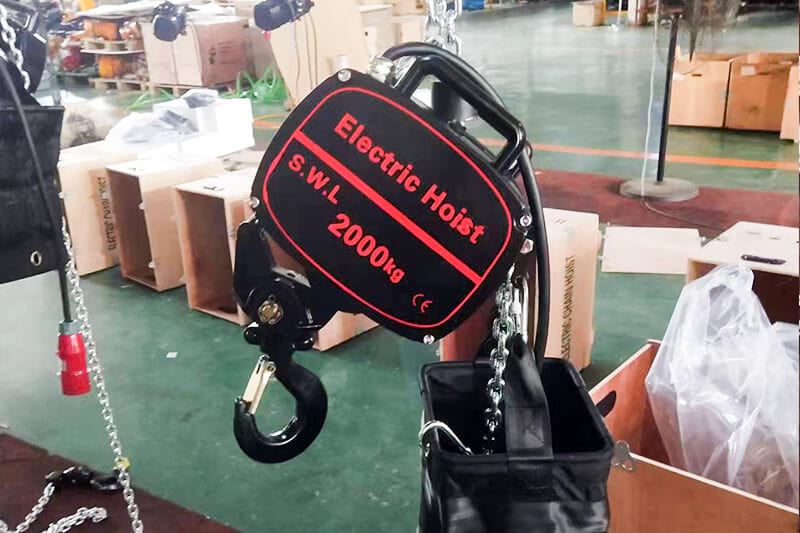

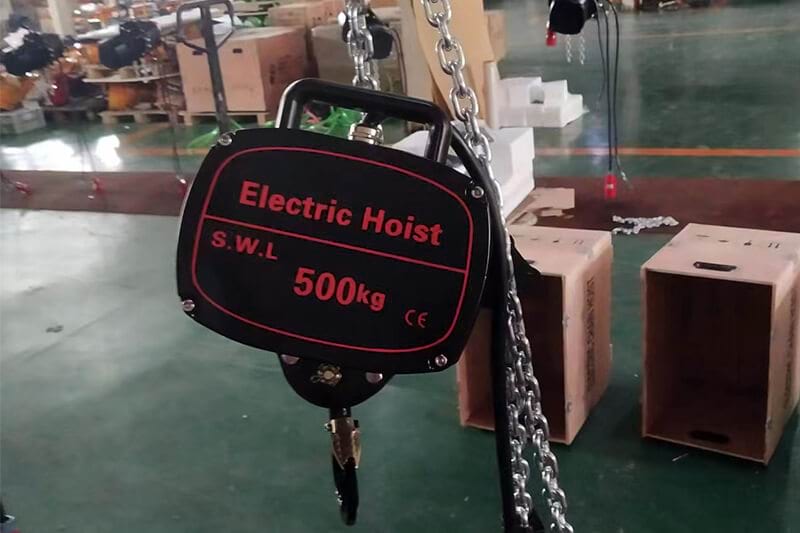

What we recommend to the Qatar customer is our most popular theatrical chain hoist in the market - HGA8 entertainment chain hoist. So, what are the characteristics of this entertainment hoist?

  • The built-in mechanical overload safety clutch adopts clutch friction plate and overload prevention device. When the load exceeds the rated load, the motor will run idly to prevent the damage to the hoist body and chain caused by overload.
  • The compact upper limit switch protects the hoist, which can provide a larger lift. (Optional, low voltage control type only)
  • The hoisting sprocket is made of alloy steel and adopts double-sided bearing, which runs smoothly and effectively ensures the smooth lifting of the chain. The five-chain socket design of the hoisting sprocket increases the contact surface between the chain and the gear to reduce vibration and chain wear and ensure the lifting process is more efficient. smooth.
  • The chain guide can ensure the quiet and smooth running of the chain, and the chain guide is constructed of heavy-duty wrought iron with anti-wear.
  • The mechanical brakes and the majestic brakes coordinate with each other to effectively ensure the braking system. The safe stage hoist majestic brakes are simple in design, and there will be no brake coil failures and no need to replace the brake discs.
  • Helical tooth design can reduce long-term wear, hard tooth surface processing, tooth grinding treatment, oil valley lubrication, with automatic temperature adjustment function, when frequent use, can adjust the temperature rise in the gear mechanism, low noise, long life, make operation Smoother and quieter operation.
  • Galvanized lifting chain can effectively prevent corrosion, and black lifting chain is also available.
  • Black double-sided canvas chain belt, each chain bag is equipped with two safety locks, there are drainage holes below and on the side to prevent the accumulation of rainwater, and the bottom is equipped with a thick bottom plate so that the force is even, and the chain bag is not deformed.
  • The hook is forged with alloy steel, equipped with anti-decoupling device, the hook can be rotated 360 degrees, and the safety factor is high.
  • The motor adopts aluminum alloy stretching shell, which has a unique heat dissipation function and is suitable for high-frequency operations. The protection level is IP55 and the insulation level is F.
  • The gear box is integrally formed by high-strength aluminum alloy die-casting, which is light, strong, stronger, and has good corrosion resistance.

Application of stage chain hoist

Electric stage hoist is specially designed for large-scale performance occasions, ceiling lighting stands, speaker sets, and large-scale scenery installations. It is also suitable for lifting in other temporary mobile occasions, such as the installation of neon sign advertising and small construction sites.

Yuantai stage chain hoists are widely used in large-scale studios, opera houses and other places at home and abroad to lift speakers, chandeliers, theater curtains, etc., also ensure accurate positioning of speakers, lighting systems, stage sets, curtains and sceneries.
