We just finished a 35 ton double girder overhead crane production at the recent 3 months, which was designed as heavy duty overhead crane and will be used in Qatar glass factory for glass and materials lifting.
Negotiations for this 35 ton overhead crane order started in May 2022. Bashir visited our website and talked about his overhead crane request with us. In the first, he told us the crane will be used in a steel mill for steel coils lifting, however, when we learned more about the working conditions, we knew that this new 35 ton overhead crane would be used in his glass factory.
Client's Business
Bashir's factory is located in the New Industrial Area in Doha, Qatar fully equipped with newly semi-automatic and full automatic glass machinery from Europe.
The factory is equipped with new state of the art technology with European Standard, and proudly run by highly qualified personnel and trained workers, both with the expertise and know-how in the field of glass processing Industry. It adopts glass processing system in accordance with the International Standard and uses high standard quality of glass processing raw materials to achieve high expectation of our valued customers for a quality product.
Supply scope
- Tempered Glass.
- Heat strengthened glass.
- Double Glass Units.
- Architectural Glass.
- Design Printed Glass.
- Sandblasted and Frosted glass.
- Bevel Glass.
- Glass Edging.
- Frameless Storefronts.
- Frameless Doors and Office Partitions.
- Glass ceramics.
- Laminated, Multi-Laminated and Bullet Proof Glass.
- Shower doors.
- Structural glazing, Skylight Dome.
- Curve glass.
- Reflective Solar Control and High-Performance glass.
- Low-e glass.
- Clear and Tinted glass.
- Extra clear glass.
- Glass accessories & fittings.
- X-ray glass.
- Fire-rated glass.
- Smart Glass.
Double Girder Overhead Crane Design and Quoataion
Regardless of whether the material is steel coil, glass, or other items, it is in normal working condition, and there is no need to consider explosion-proof and anti-corrosion issues. So, we designed the top running overhead crane and offered our quotation according to Bashir's request.
- Lifting capacity: 35 ton
- Overhead crane span: 30.5 m
- Lifting height: 10 m
- Power supply: 380V 50Hz 3Phase
- Crane travelling length: 90 m
- Working duty: M5
Qatar 35 ton Double Girder Overhead Crane Drawing
After checking the crane solution and quotation, he pointed out that we should replace all the motors with Siemens brand. He thought the Siemens motor quality is better than other brands. We updated the configs and revised the quotation. The price of Siemens motors is high in the market, but he didn't know that. So, when the client checked the new quotation, he was surprised and said "too much expensive". For crane and hoist products we supplied, different configs will have different price and lead times. The motors are purchased from motor factories and their distributors, we cannot manipulate the motor prices. The customer got it.

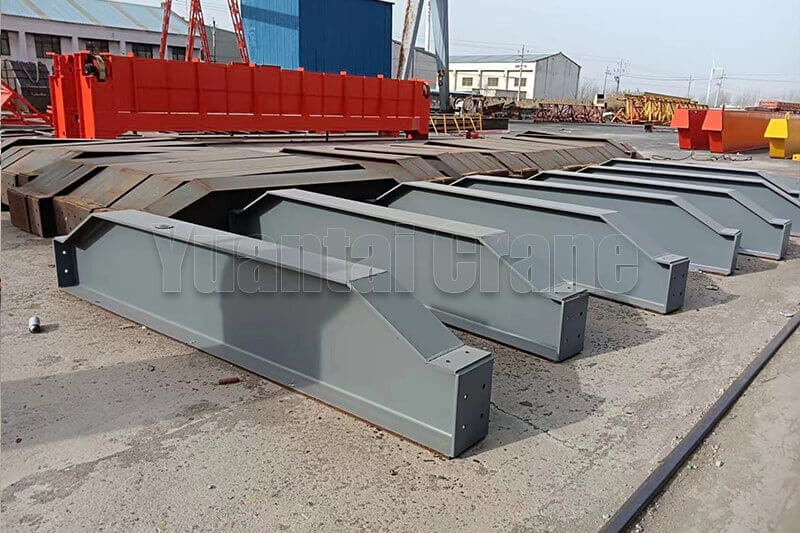

The client also sent us his factory photos, and we found there were no bearing beams on the columns, so we add this part to our quotation. After double checking and confirming the precise dimensions of the workshop, we offered the final overhead crane solution and quotation as follow.
- Model: QDX
- Lifting capacity: 35 tons
- Crane span: 31.3 meters
- Lifting height: 7.7 meters
- Power supply: 380V 50Hz 3Phase
- Crane travelling length: 90 m
- Working duty: M5
- Bearing beam: 180 meters
- Busbar system: 90 meters
- Control model: wireless remote control

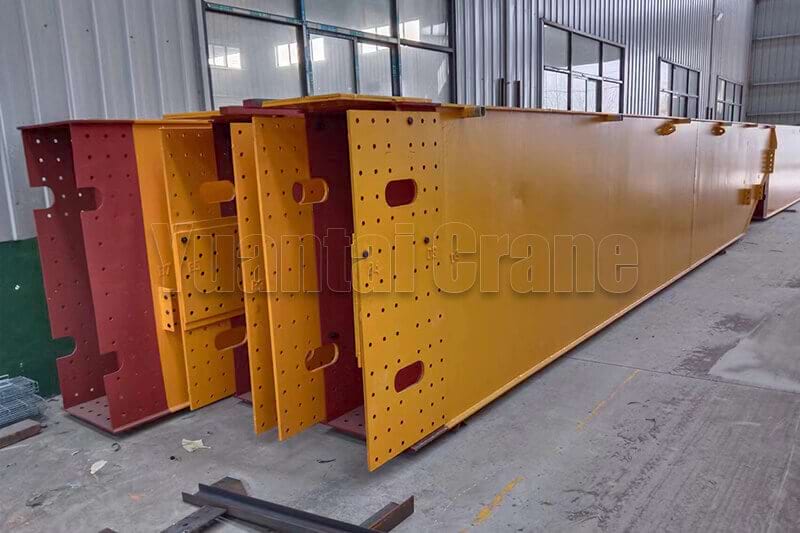

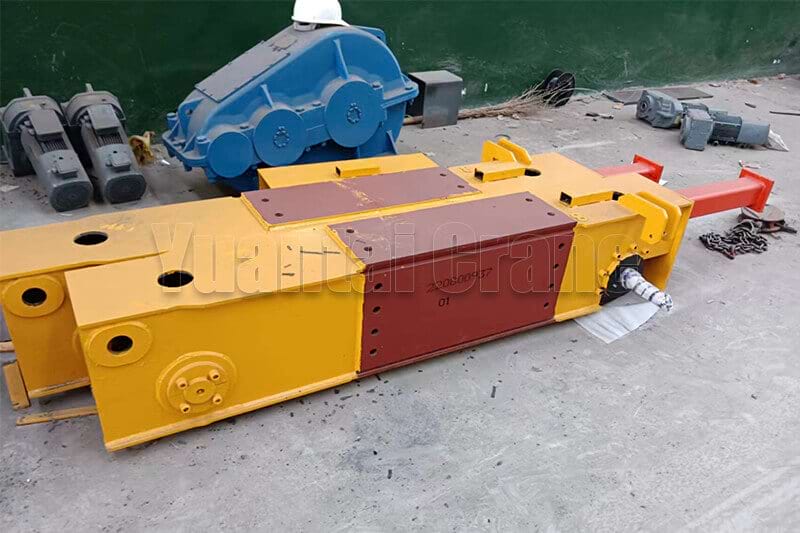

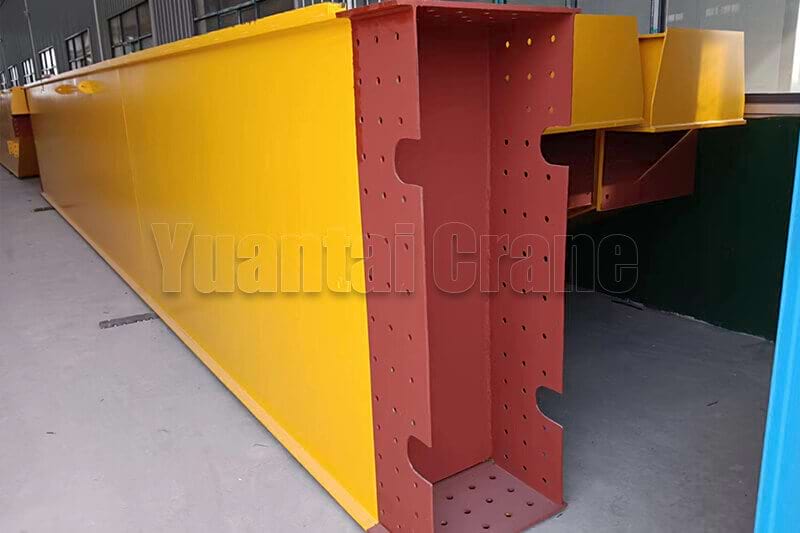

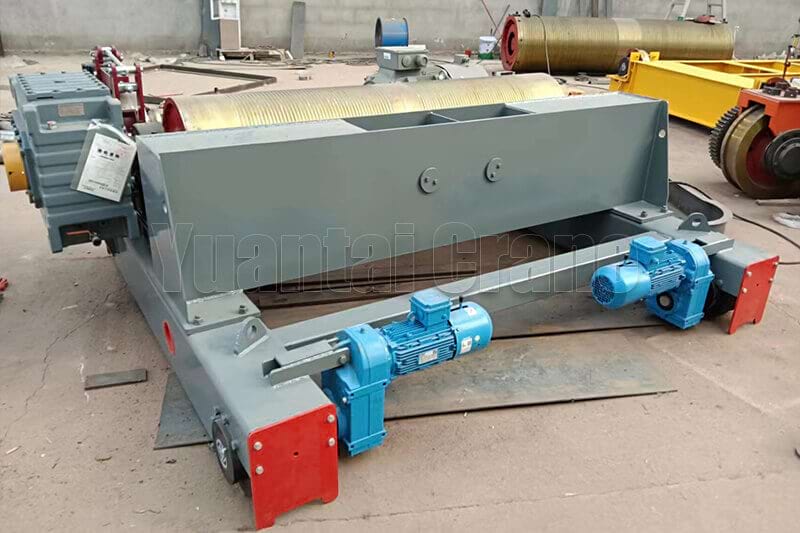

Qatar 35 ton Double Girder Overhead Crane Production Video and Gallery
QDX type Top Running Double Girder Overhead Crane Introduction
- Designed with FEM/DIN standards.
- Widely used in machinery fabrication, metallurgical plant auxiliary workshop, storage, etc.
- Lifting Capacity: 1~100t
- Span: 7.5-31.5m
- Lifting Height: 6/9/12/18m (according to your needs)
- Voltage: 220-480V 50/60Hz 3Phase
- Working Class: M5, M6
- Ambient Temperature: -25~40℃
Advantages of Double Girder Overhead Crane
- Double main beams design, more strong
- Large lifting capacity
- Higher working duty
- Higher lifting and travelling speed
- Higher lifting height
- Light weight, light wheel load, reliable performance
Features of Double Girder Overhead Crane
- FEM and GB production standards
- Epoxy zinc-rich primer and chlorinated rubber topcoat
- Pendant control, remote control and cabin control available
- Overload limiter, lifting height limiter, cross travelling limiter and crane long travel limiter are included
- Automatic power-off protection
- Frequency conversion is available for lifting, cross travelling and crane travelling
- Customized overhead crane solution available for special industries
